CONE TYPE
uniontech is contribute to the development of human culture
CONE TYPE TUBE FITTINGS
Applicable Tube And Pipe
- Stainless steel pipe, size 50A(2") and below
- Carbon steel pipe, size 50A(2") and below
Nominal Pressure And Wall Thickness
Ambient temp -30°C ~ -40°C
Applicable Tube And Pipe
| KIND | TUBE O.D DESIGNATIONS | CONE WALL THICKNESS | ||||||
|---|---|---|---|---|---|---|---|---|
| NOMINAL PRESSURE( kgf / ㎠ ) | 160 | 250 | 320 | 400 | 160 | 250 | 320 | 400 |
| TUBE O.D | ||||||||
| 10 | 1.0 | 1.5 | 1.5 | 2.0 | 1.75 | 2.0 | 2.0 | 2.25 |
| 12 | 1.5 | 2.0 | 2.0 | 2.5 | 2.0 | 2.0 | 2.5 | 2.5 |
| 16 | 1.5 | 2.0 | 2.5 | 3.0 | 2.0 | 2.0 | 3.0 | 3.0 |
| 20 | 2.0 | 2.5 | 3.0 | 4.0 | 2.75 | 2.75 | 3.5 | 5.0 |
| 25 | 3.0 | 3.0 | 4.0 | 5.0 | 3.0 | 3.0 | 4.0 | 5.0 |
| 30 | 3.0 | 4.0 | 5.0 | 6.0 | 4.0 | 4.0 | 5.0 | 6.0 |
| 38 | 4.0 | 5.0 | 6.0 | 7.0 | 4.5 | 5.0 | 6.0 | 7.0 |
| 50 | 6.0 | 7.0 | 8.0 | 9.0 | 6.5 | 7.0 | 8.0 | 9.0 |
REMARK
- Maximum working temperature : 120°C
- Each Blanked 'Designations' of dimensional table should be filled by norminal pressure ratings like bellows
| Nominal Pressure( kgf / ㎠ ) | 160 | 250 | 320 | 400 |
|---|---|---|---|---|
| Designations Mark | K16 | K25 | K32 | K40 |
Material for Cone Type Fittings
- Jis G4303 SUS304 SUS316
- Jis G3101 SS400
- Jis G4051 S20C
- Jis G3201 SF440A
Threads
- Metric fine threads, Jis B0207 mark M
- Parallel pipe threads, Jis B0202 mark G, PF
- Taper pipe threads, Jis B0203 mark R, PT

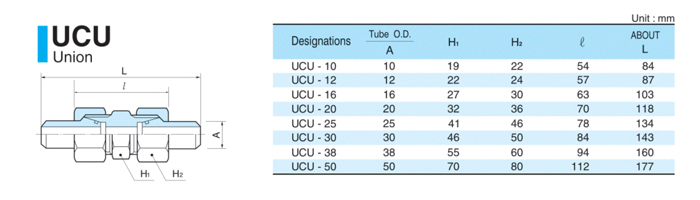

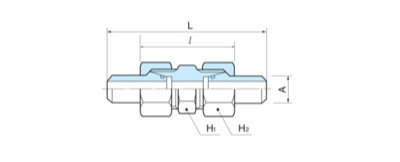

UCU
Union
UCU

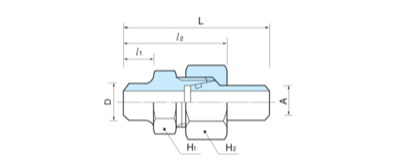

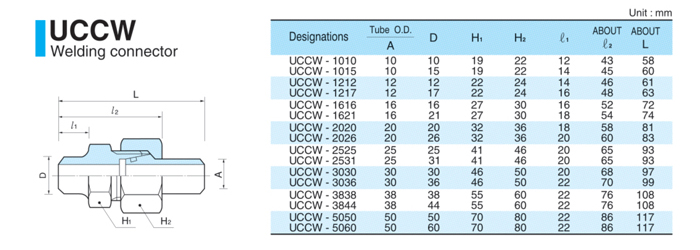

UCCW
Welding Connector
UCCW

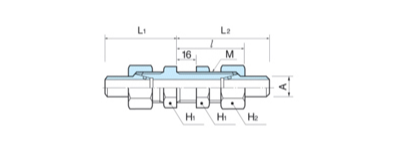

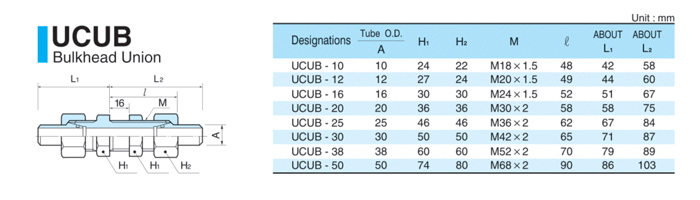

UCUB
Bulkhead Union
UCUB

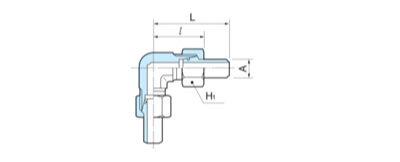

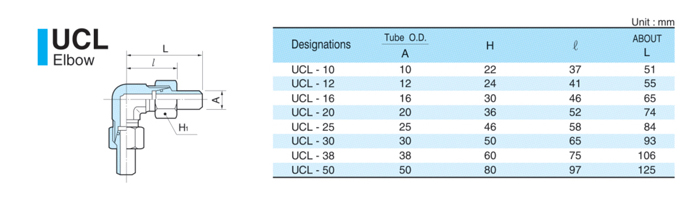

UCL
Elbow
UCL

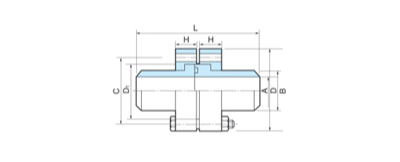

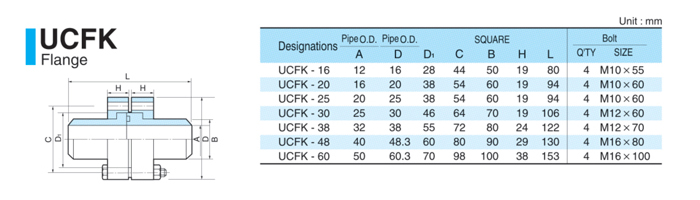

UCFK
Flange
UCFK

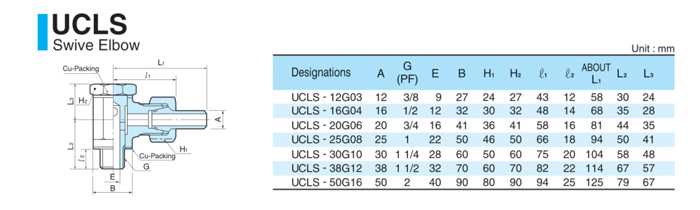

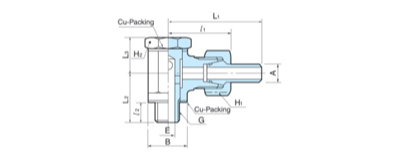

UCLS
Swive Elbow
UCLS

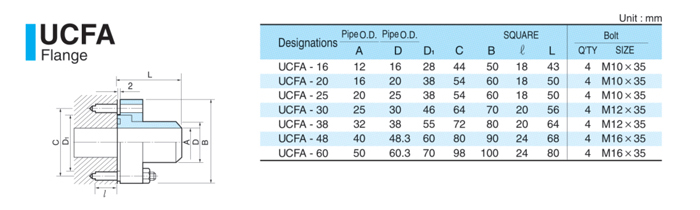

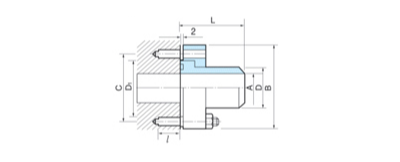

UCFA
Flange
UCFA

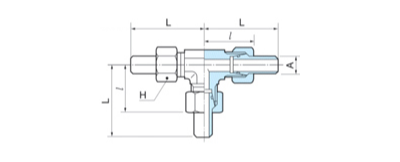

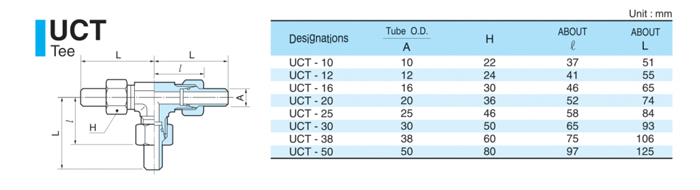

UCT
Tee
UCT

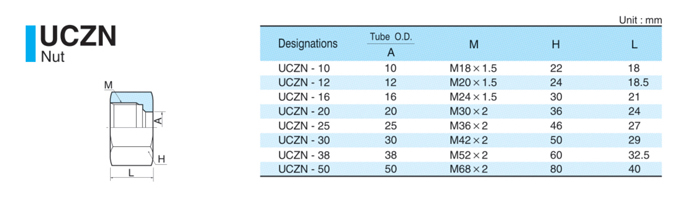

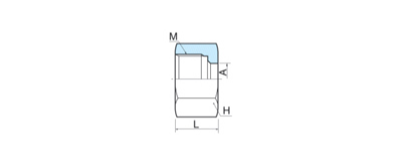

UCZN
Nut
UCZN

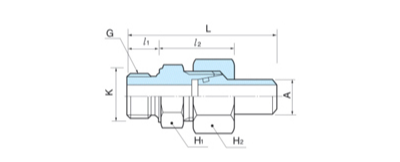

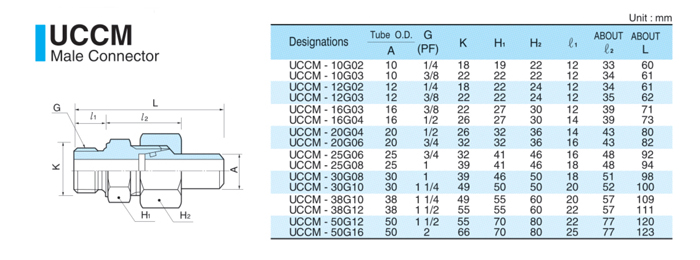

UCCM
Male Connector
UCCM

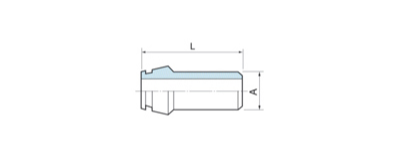

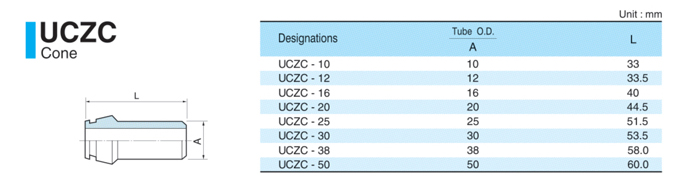

UCZC
Cone
UCZC
