BITE TYPE
make the invisible visible uniontech

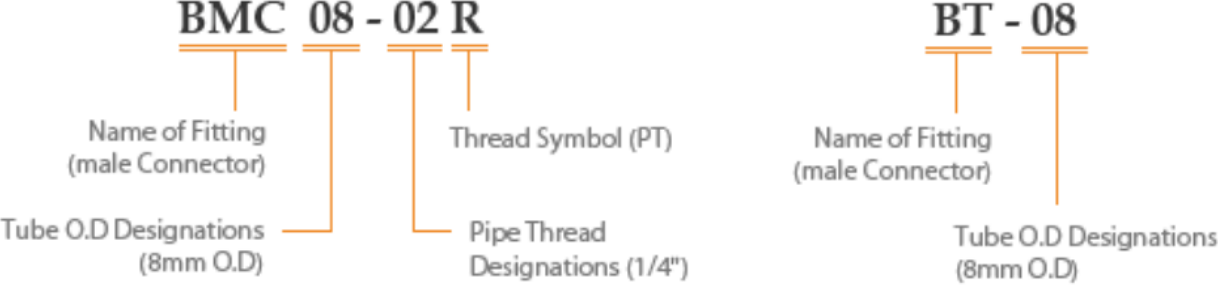

DESIGNATION PART NUMBER SYSTEM
The symbols in the part number column on each page represent the shape and size of individual fittings.
Part Number
| TUBE O.D DESIGNATION | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Tube O.D | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 |
| Designations | 04 | 06 | 08 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 |
| PIPE THREAD DESIGNATIONS | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Nom, Size | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| Designations | 01 | 02 | 03 | 04 | 06 | 08 | 10 | 12 | 16 |
Thead symbols
R
Taper Pipe Threeds
(PT : JIS BO 203, ISO 7/1)
G
Taper Pipe Threeds
(PT : JIS BO 202, ISO 228/1)
N
American National Standard Taper Pipe Threads
(NTP: ANSI B 2.1)

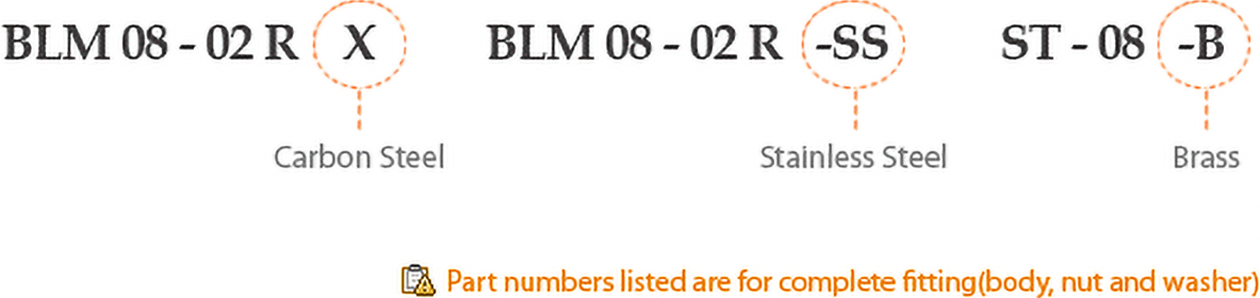

Material Indication System
Specify material by part number suffix letter
- empty = Steel
- -SS = Stainless Steel
- -B = Brass

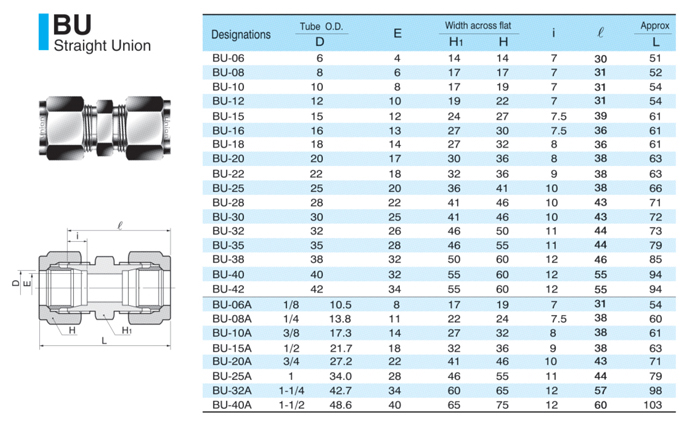

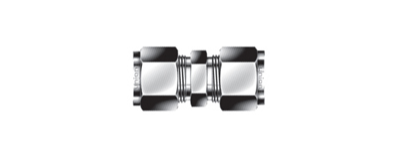

BU
Straight Union
BU

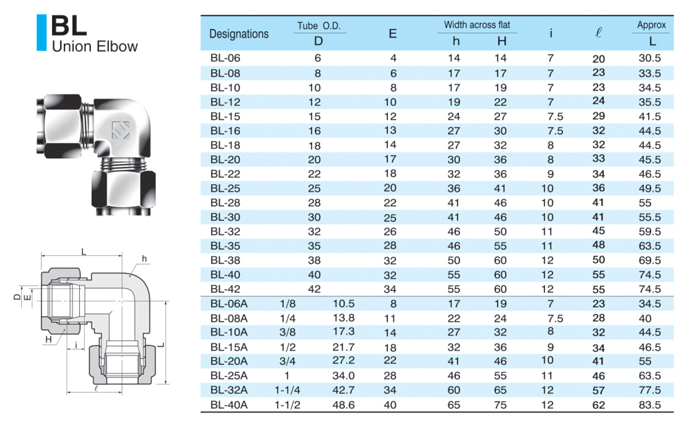

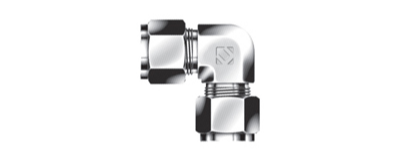

BL
Union Elbow
BL

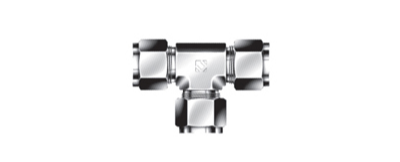

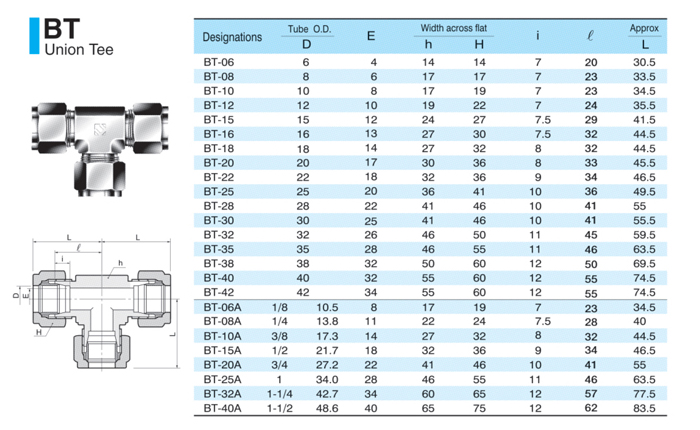

BT
Union Tee
BT

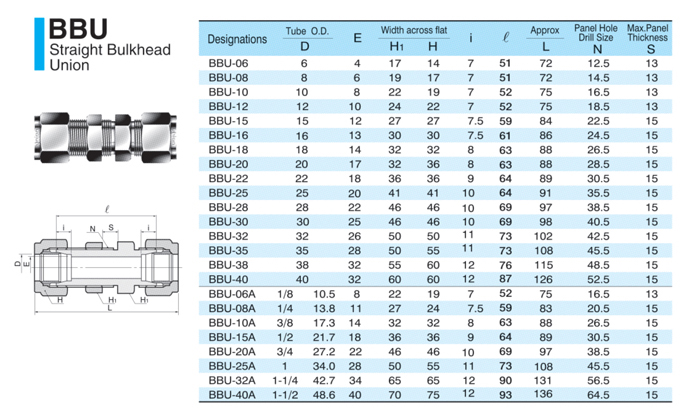

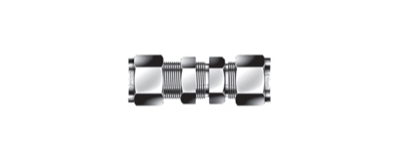

BBU
Straight Bulkhead Union
BBU

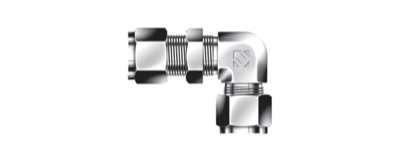

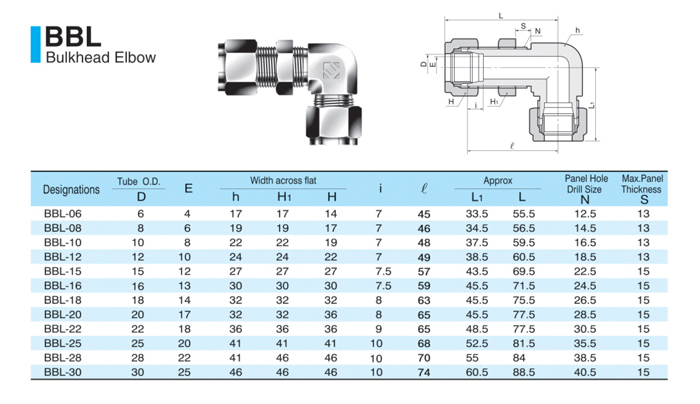

BBL
Bulkhead Elbow
BBL

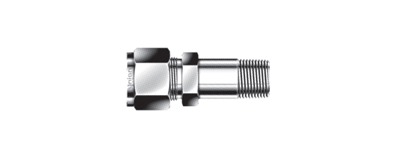

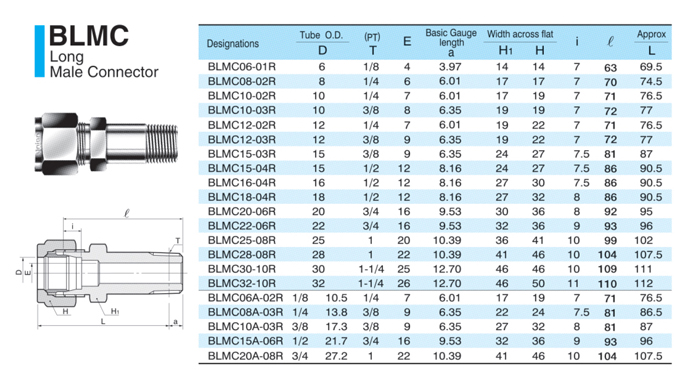

BLMC
Long Maile Connector
BLMC

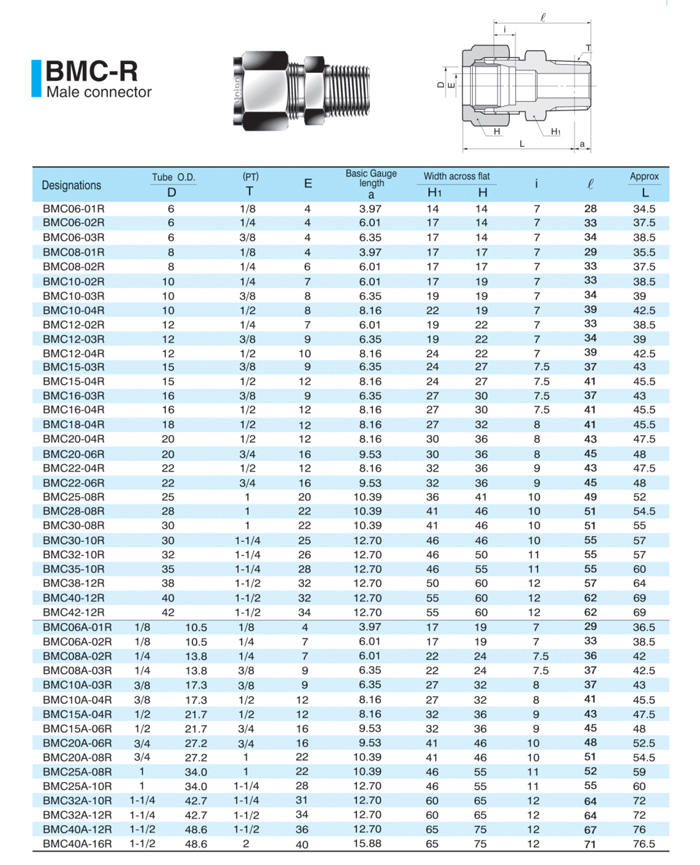

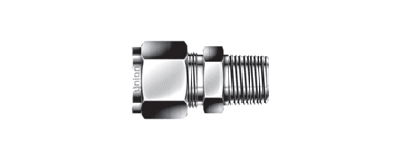

BMC-R
Male Connector
BMC-R

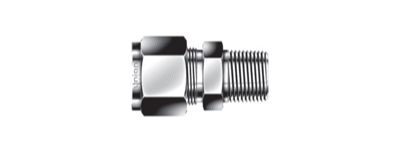

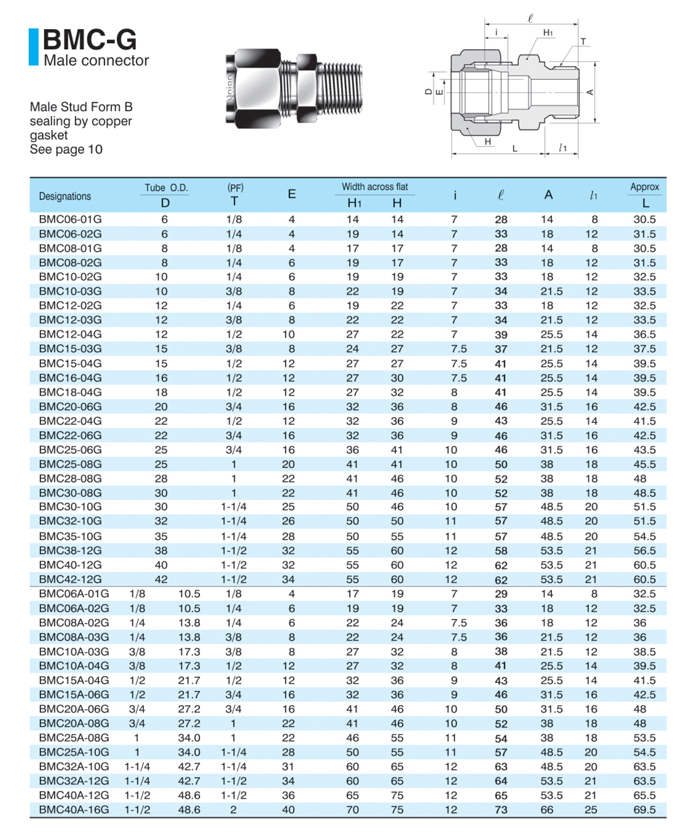

BMC-G
Male Connector
BMC-G

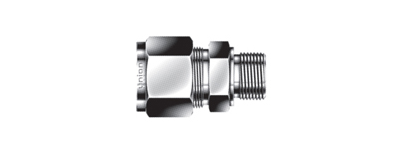

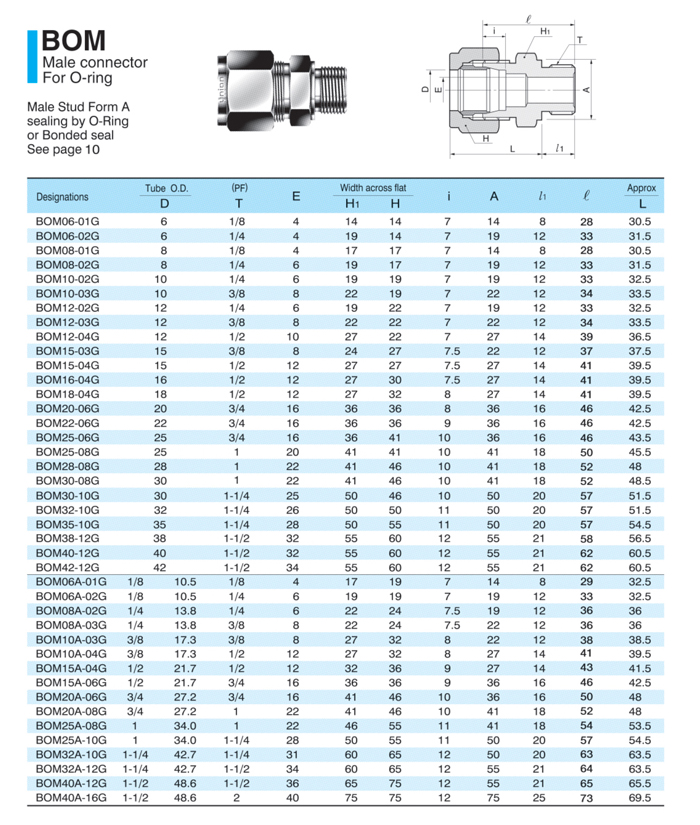

BOM
Male Connector (For O-Ring)
BOM

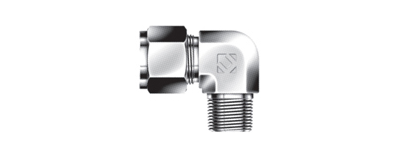

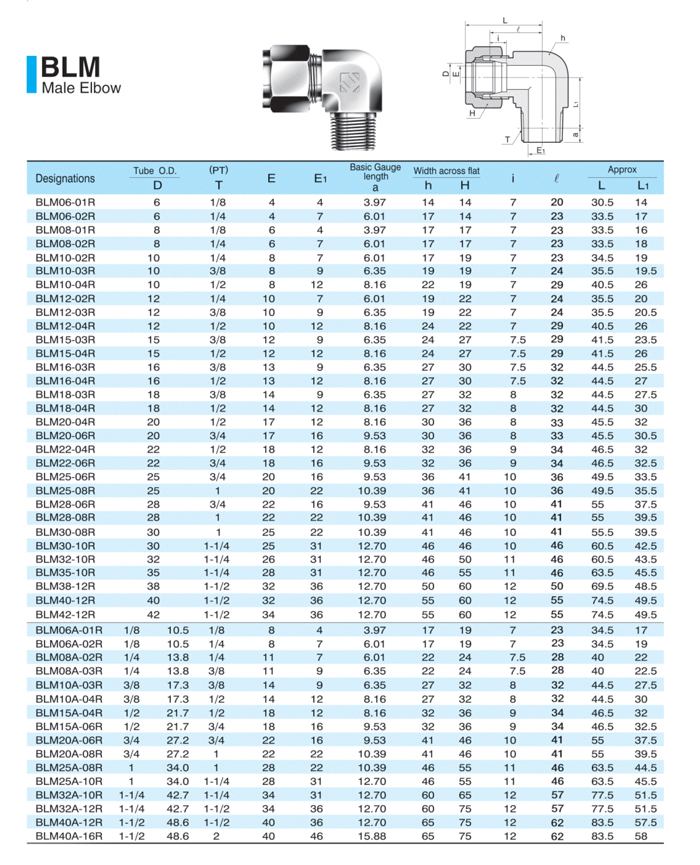

BLM
Male Elbow
BLM

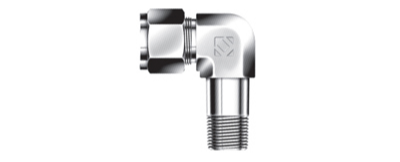

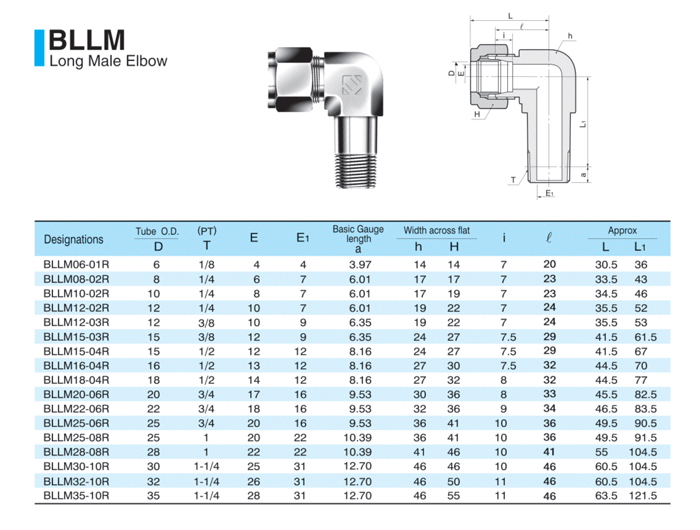

BLLM
Long Male Elbow
BLLM

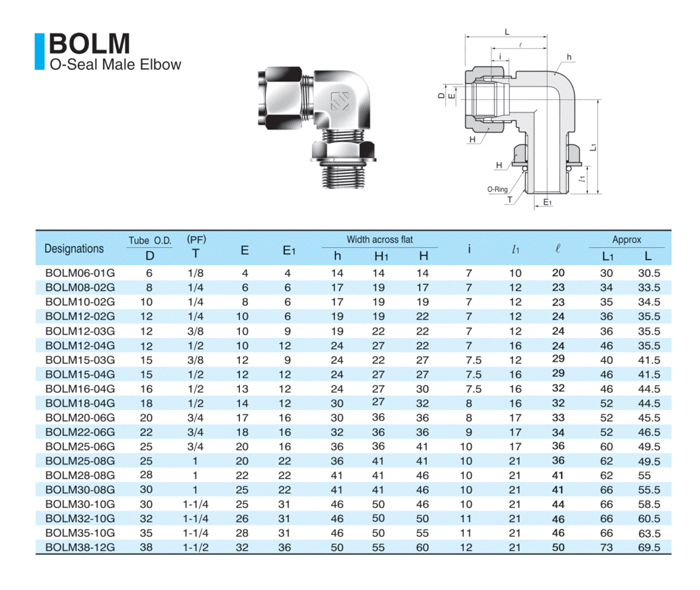

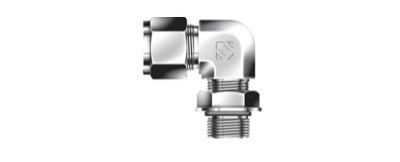

BOLM
O-Seal Male Eblow
BOLM

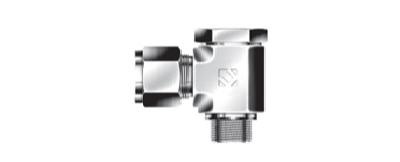

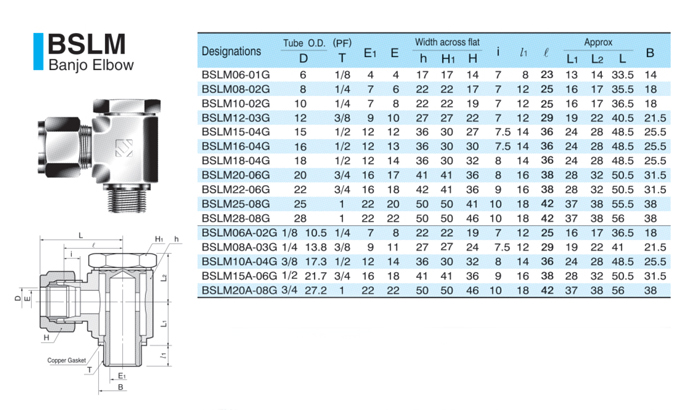

BSLM
Banjo Elbow
BSLM

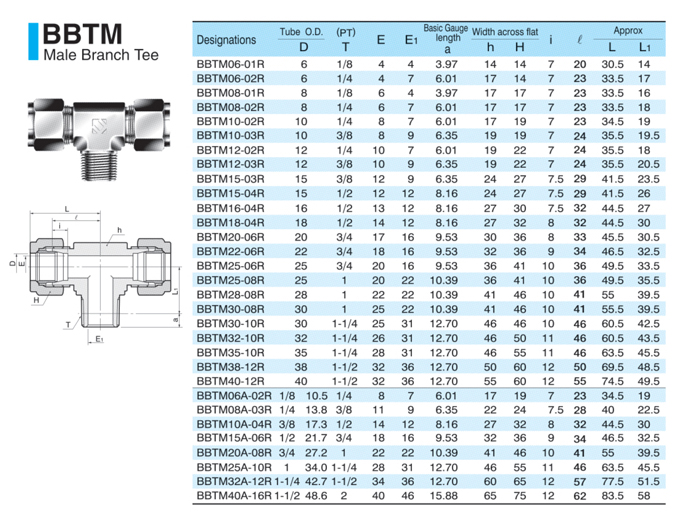

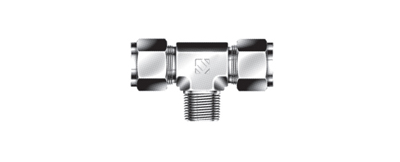

BBTM
Male Branch Tee
BBTM

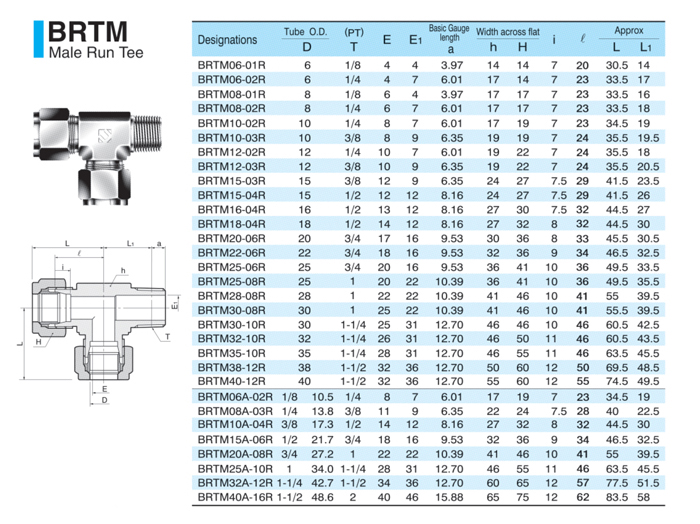

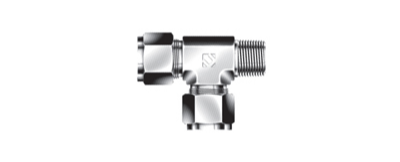

BRTM
Male Run Tee
BRTM

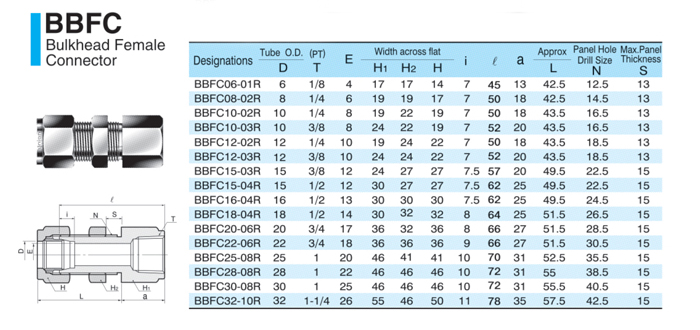

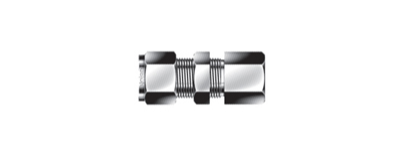

BBFC
Bulkhead Female Connector
BBFC

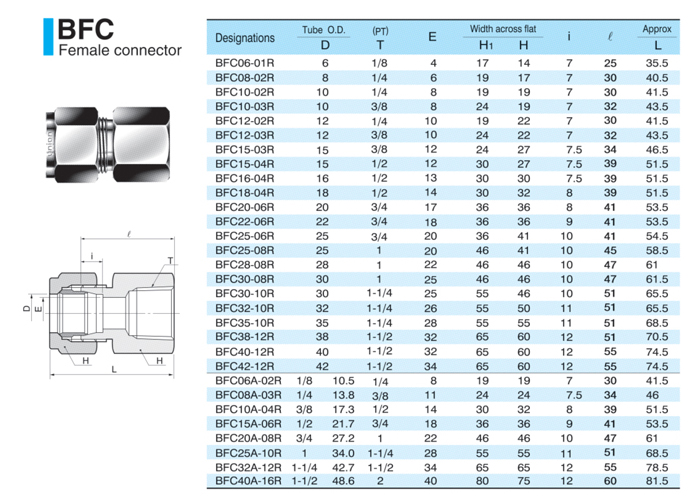

BFC
Female Connector
BFC

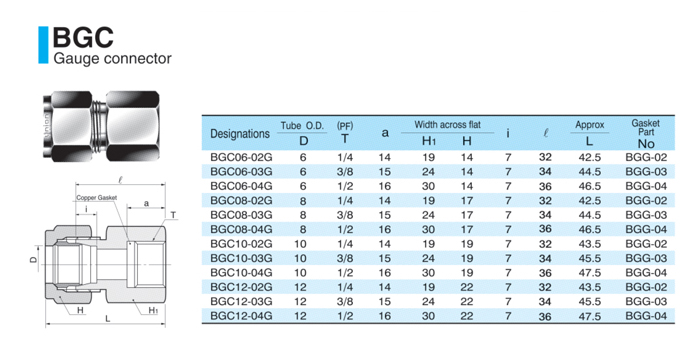

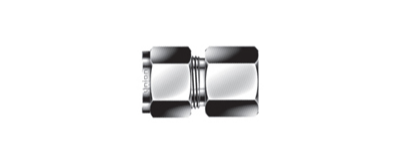

BGC
Gauge Connector
BGC

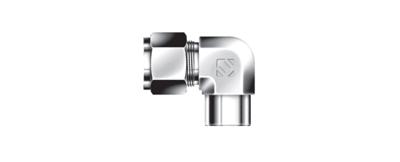

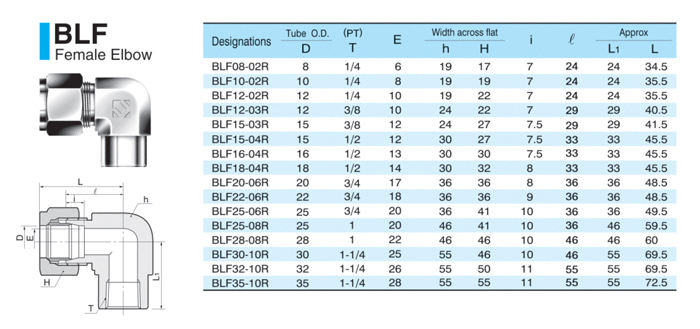

BLF
Female Elbow
BLF

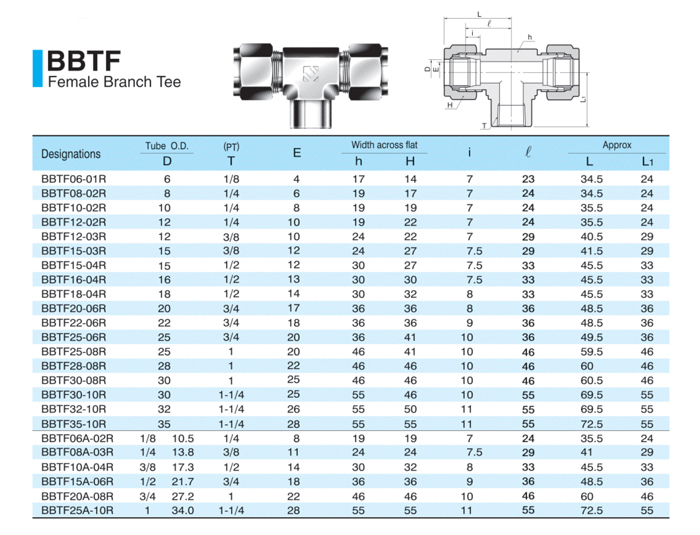

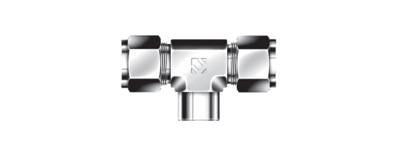

BBTF
Female Branch Tee
BBTF

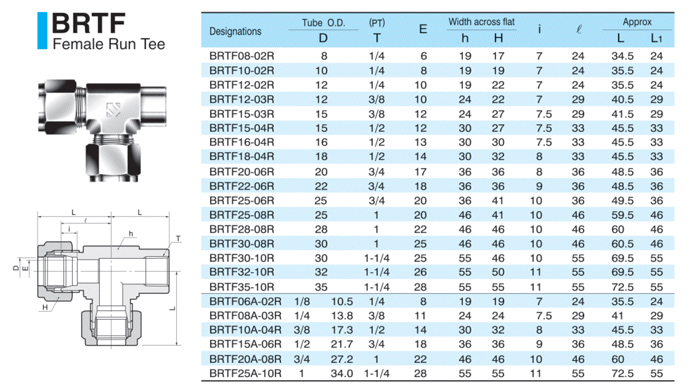

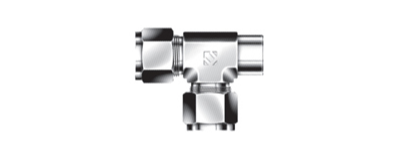

BRTF
FeMale Run Tee
BRTF

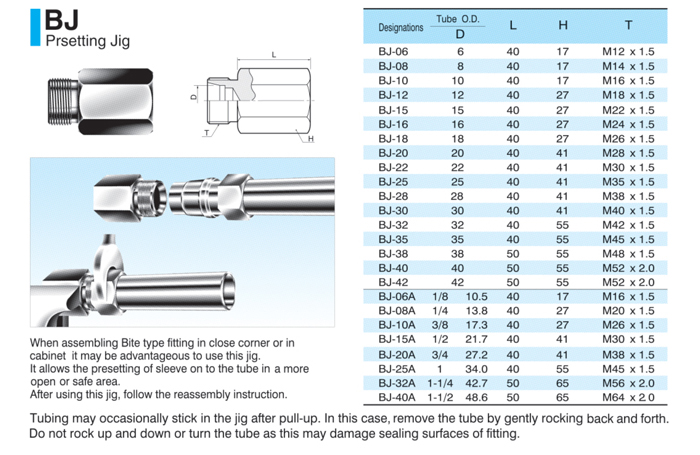

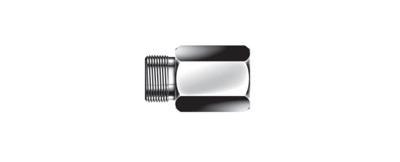

BJ
Jig
BJ

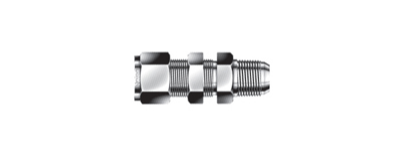

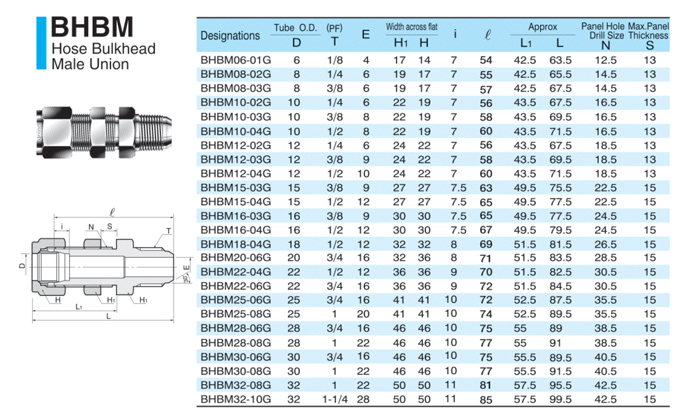

BHBM
Hose Bulkhead Maile Union
BHBM

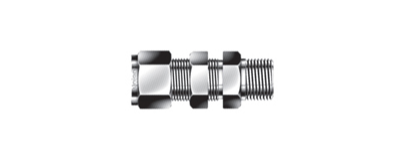

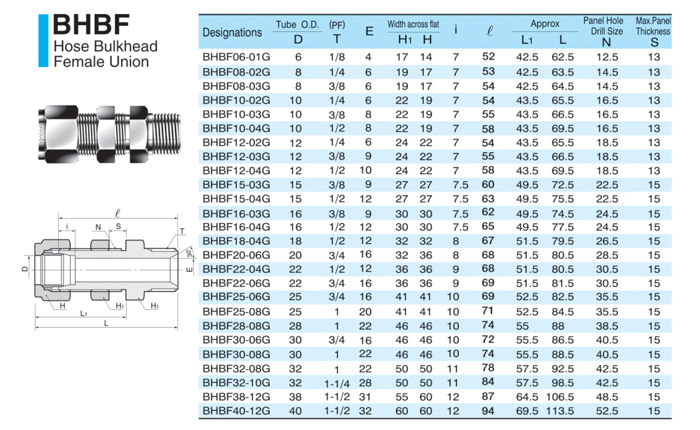

BHBF
Hose Bulkhead Female Union
BHBF

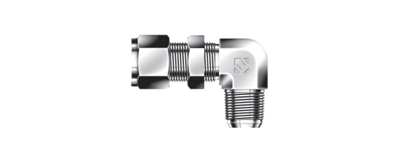

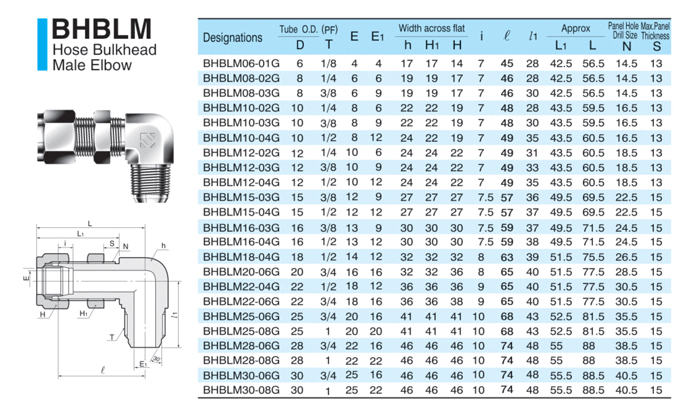

BHBLM
Hose Bulkhead
BHBLM

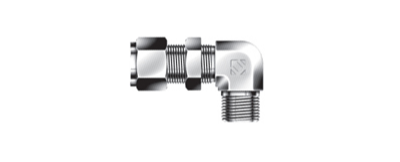

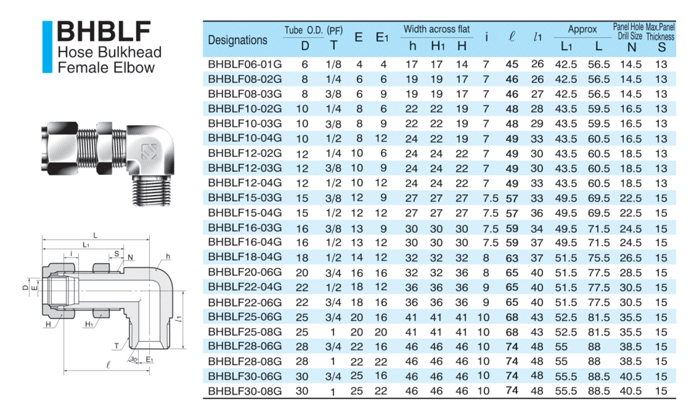

BHBLF
Hose Bulkhead Female Elbow
BHBLF

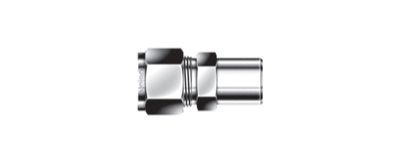

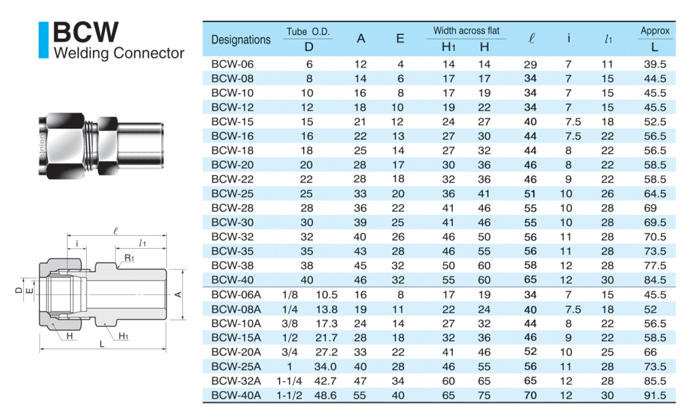

BCW
Welding Connector
BCW
BCW
Welding Connector
BCW

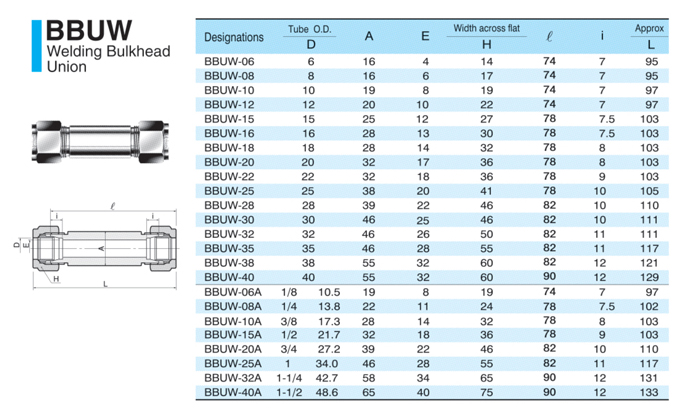

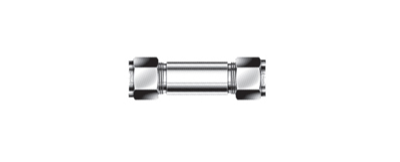

BBUW
Welding Bulkhead
BBUW

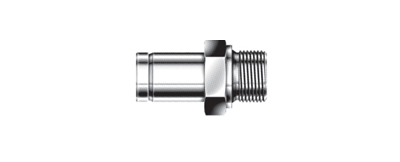

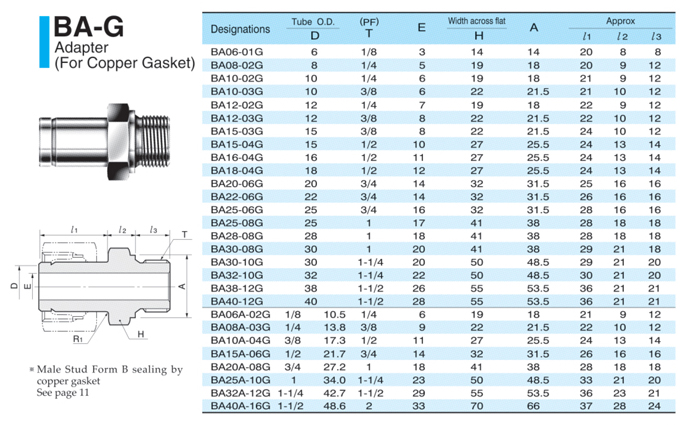

BA-G
Adapter (For Copper Gasket)
BA-G

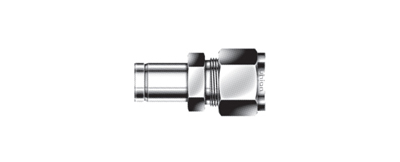

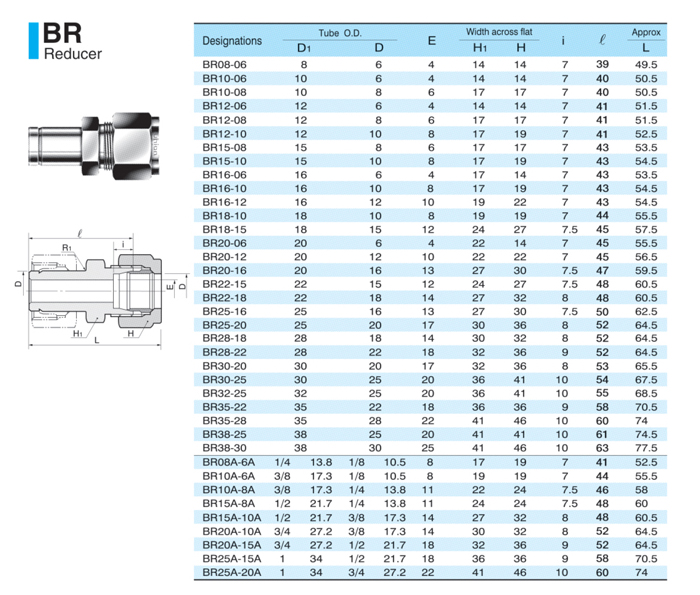

BR
Reducer
BR

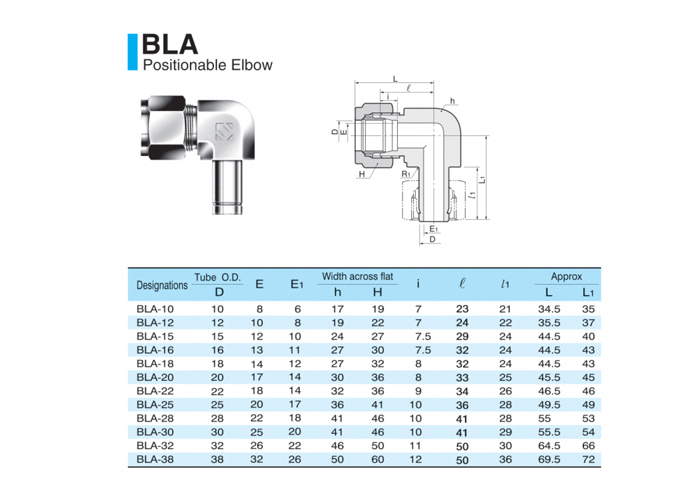

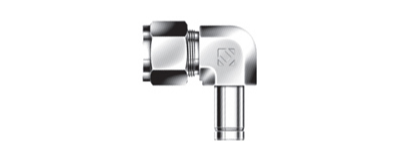

BLA
Positionable Tee
BLA

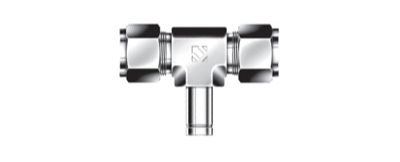

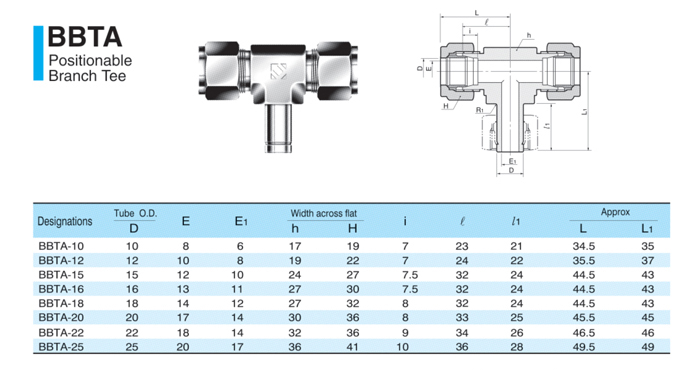

BBTA
Positionable Branch Tee
BBTA

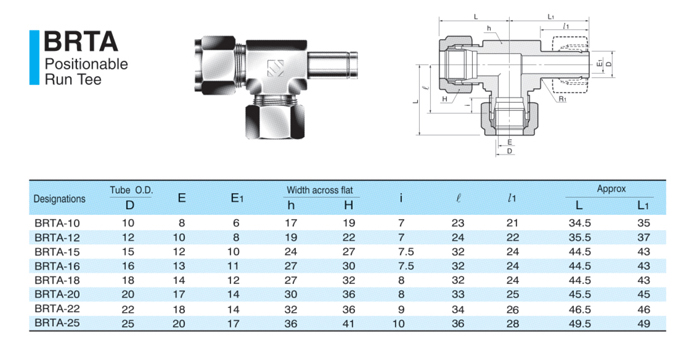

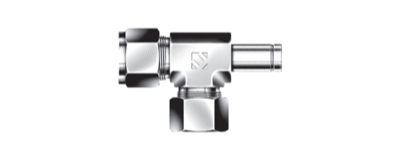

BRTA
Positionable Run Tee
BRTA

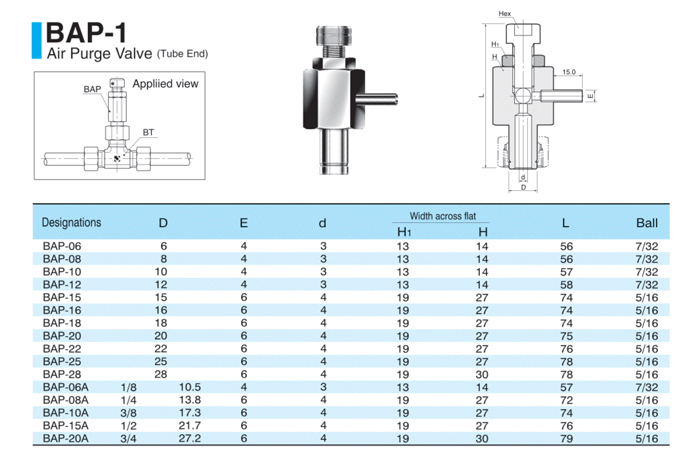

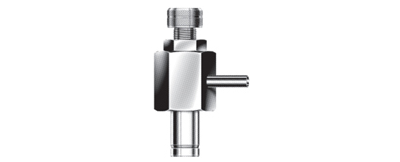

BAP-1
Air Purge Valve (Tube End)
BAP-1

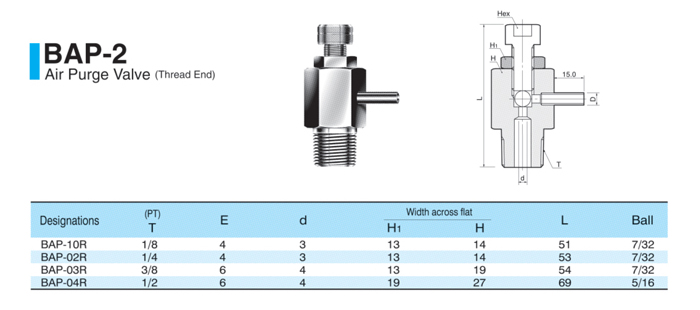

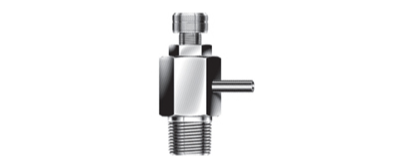

BAP-2
Air Purge Valve (Thead End)
BAP-2

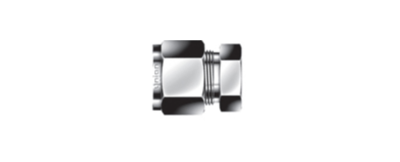

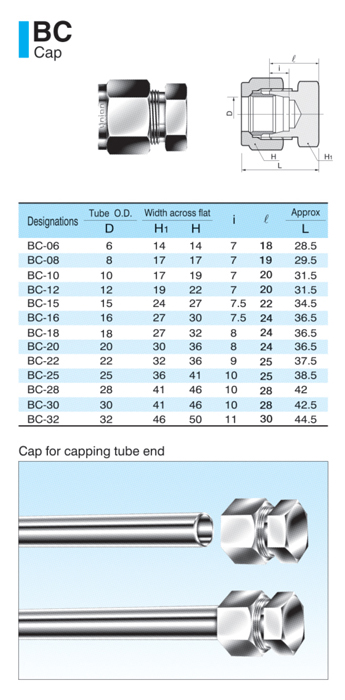

BC
CAP
BC

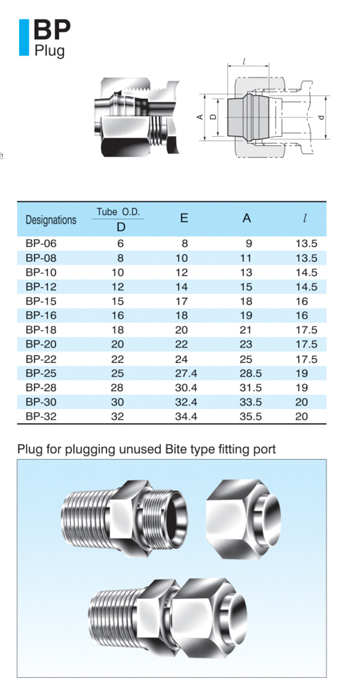

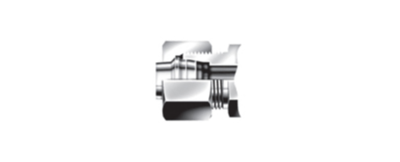

BP
plug
BP

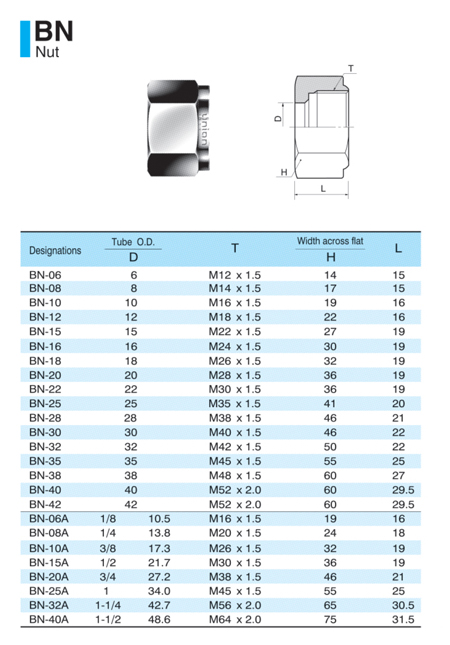

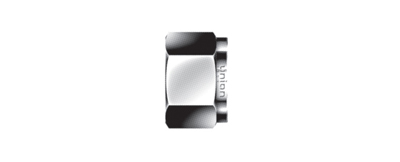

BN
Nut
BN

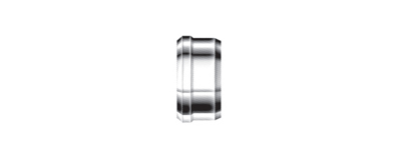

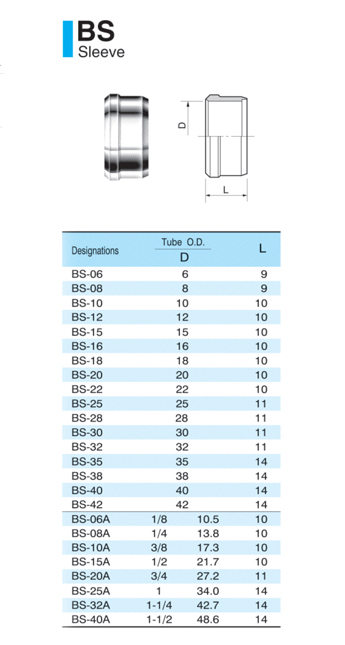

BS
Sleeve
BS
